1–6 W RGB laser
1–6 W RGB laser
An RGB laser with SD playback and ILDA connectivity for prepared sequences.
Each power is a separately sold version. RGB means red, green and blue. The full reference for your selection appears below.
Your selection
International deliveryProcessing: 3–5 business days
Processing: 3–5 business days. After dispatch, estimated delivery: Canada 5–10, United States 5–12, international 7–15 business days. Available destinations and shipping charges are shown at checkout. Tracking is sent by email. Customs or carrier delays may apply.
Shipping times and fees30-day returnsConditions apply · request first
Request a return within 30 days of receiving your order. Items must be unused, with tags, original packaging and proof of purchase. Custom items, sale items and gift cards are excluded. Contact LightBros before returning an item. Return address, after your request is approved: LightBros, 27 Rue Cedar, Bolton Est QC J0E 1G0, Canada.
Return conditionsProduct warrantyCoverage period listed: 1 year
This period is listed in the product specifications. Contact LightBros to confirm coverage, exclusions and the procedure for this model.
Ask about the warrantyTalk to the teaminfo@light-bros.com
Need help with a model, an installation or an order? Email us with the product reference and, if you have already purchased, your order number.
Email LightBrosWill it work with your equipment?Send us your fixture and controller model numbers.
Couldn't load pickup availability
- Listed optical power
- 1 / 2 / 3 / 4 / 5 / 6 W, depending on variant
- Wavelengths
- Red 638 nm, green 520 nm, blue 445 nm
- DMX channels
- 18 / 27
In your setup
What it does for you
ILDA receives patterns from a compatible laser system. Detailed PUB-1 specifications apply to the 1 W and 3 W versions.
Control and connections

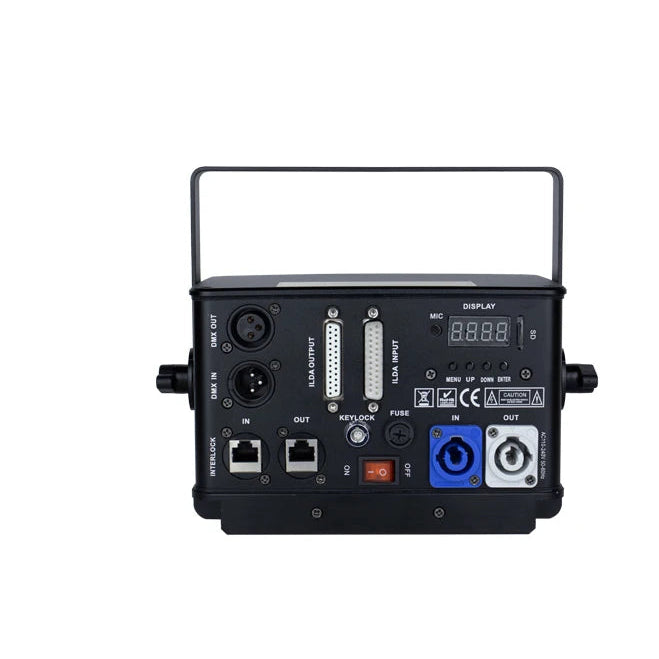

PUB-1 1 W / 3 W: ILDA DB25 and 3-pin DMX XLR. These ports do not imply an included interface or software.
Key specifications
Specifications
Product specifications depend on the selected model and version.
PUB-1 1 W / 3 W specifications
- Variants: 1, 2, 3, 4, 5 or 6 W RGB
- Control: 18/27-channel DMX, ILDA, SD card, automatic, sound or master/slave
- Listed scanner: 15 kpps
- Connections: 3-pin XLR and ILDA DB25
- Aluminium housing; listed net weight: 2 kg
- Supply: 100–250 V; listed consumption: 20 W
- Listed laser class: IV
PUB-1 1 W / 3 W specifications
| Brand and model | Knight — PUB-1 |
|---|---|
| Wavelengths | Red 638 nm, green 520 nm, blue 445 nm |
| 1 W model distribution | R 300 mW / G 200 mW / B 500 mW |
| 3 W model distribution | R 700 mW / G 800 mW / B 1.5 W |
| Control | SD card, sound-active, auto, DMX, master/slave, ILDA |
| DMX channels | 18 / 27 |
| Modulation | TTL / analogue, automatic switching |
| Scanner | AT 15 KPPS; listed reflectance above 99% at 45° |
| Scan angle — PUB-1 1 W / 3 W | 60° maximum |
| Output spot | 5 × 6.2 mm |
| Listed laser class | IV |
| Display and connections | AT-S2; 3-pin DMX in/out, DB25 in/out, power in/out and fuse |
| Power supply / consumption | 100–250 V; listed 20 W |
| Cooling / housing | Integrated aluminium radiator and housing |
| Operating temperature | −10 to 45 °C |
| Net weight | 2 kg |
| Listed service life | ≥ 10,000 h in a constant-temperature environment |
