- Main sources
- 8 × 15 W RGBW 4-in-1
- Halo
- 96 × 0.3 W 5050 RGB 3-in-1
- Movement
- 540° pan, continuous 360° tilt rotation
In your setup
What it does for you
The head can keep rotating vertically without reversing direction.

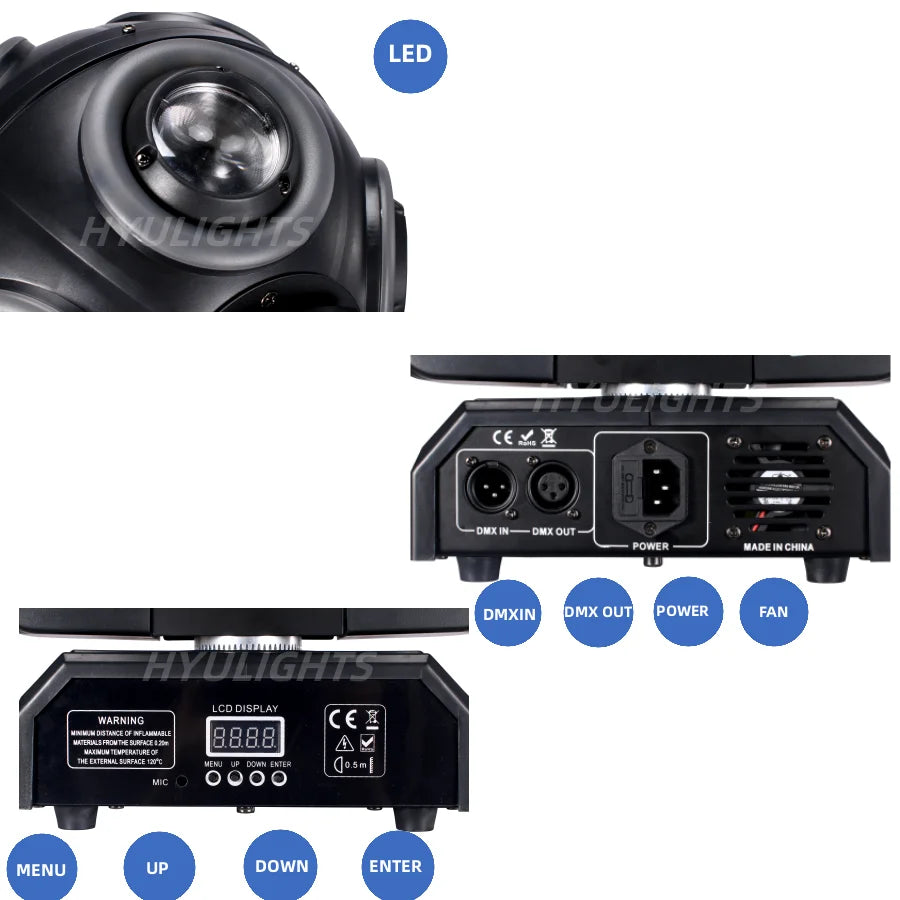

Control and connections
Use 16-channel DMX control, or built-in automatic and sound-active programs.
Key specifications
Specifications
Product specifications depend on the selected model and version.
Listed specifications
- 8 × 15 W RGBW 4-in-1 LEDs
- Halo: 96 × 0.3 W RGB 3-in-1 LEDs
- Pan: 540°; continuous 360° tilt
- Listed beam: 4°; strobe: 15 flashes/s
- Dimming: 0–100%
- Control: DMX, automatic, sound or master/slave
- 4-button display
- Net weight: 4 kg; packed weight: 5 kg
- Packaging: 39 × 30 × 21.5 cm
Detailed specifications

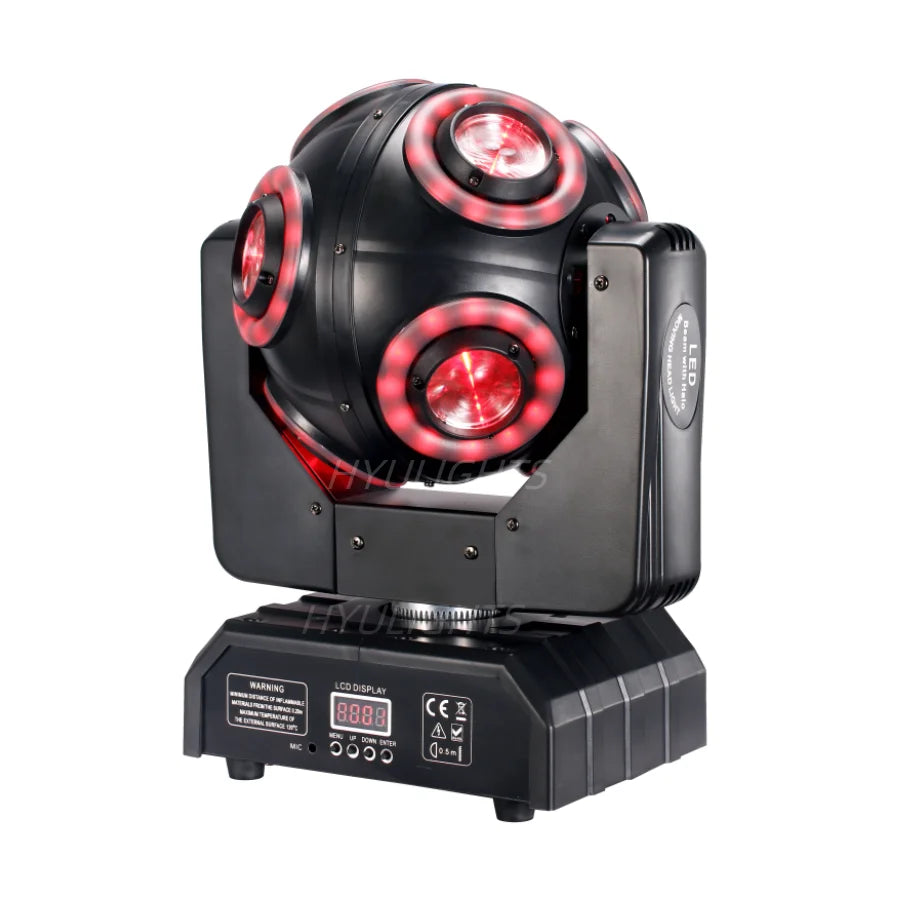

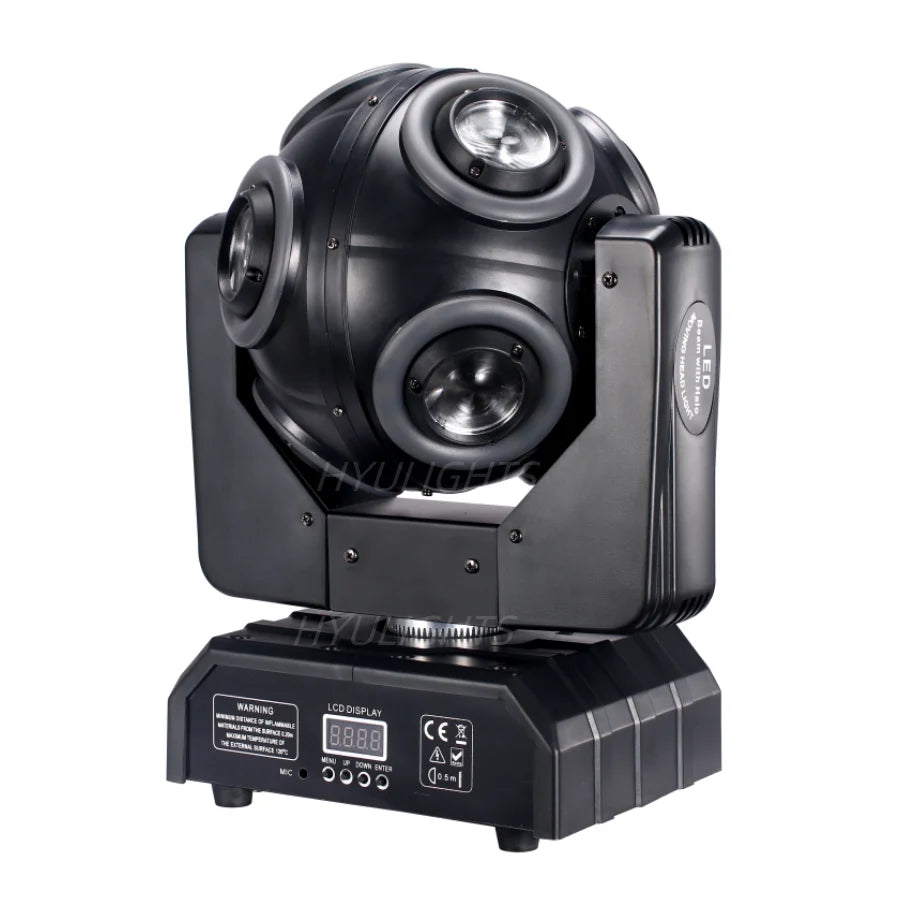

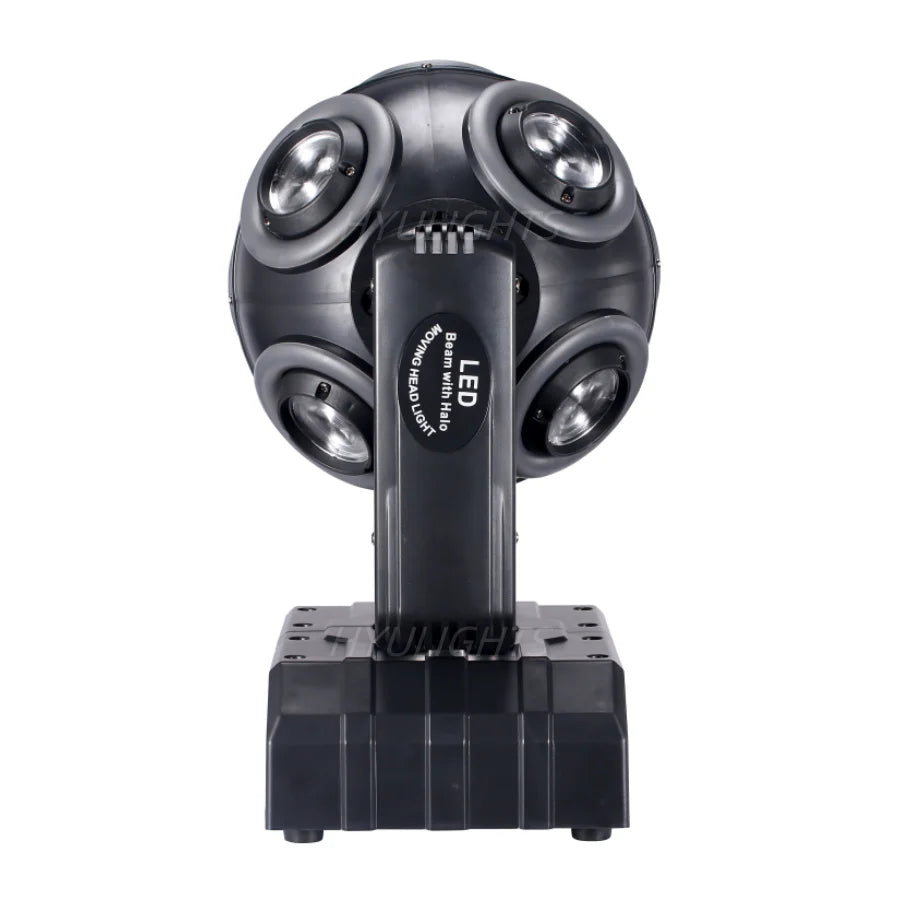

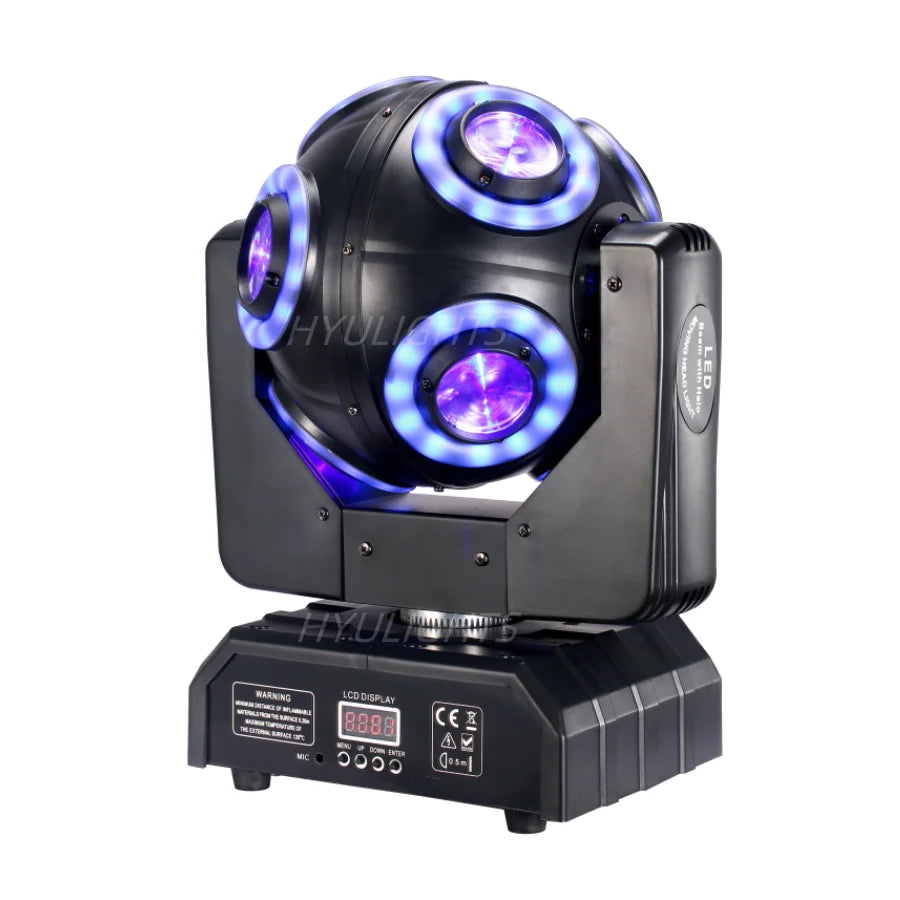

| Brand and model | HYULIGHTS — HYU-150B |
|---|---|
| Main sources | 8 × 15 W RGBW 4-in-1 |
| Halo | 96 × 0.3 W 5050 RGB 3-in-1 |
| Beam angle | 4° |
| Movement | 540° pan, continuous 360° tilt rotation |
| Dimming | 0–100%, regulated constant colour |
| Strobe | 15 flashes/s, any colour |
| Control / channels | 16-channel DMX, auto, sound-active, master/slave |
| Display | Four-button LED display |
| Net / gross weight | 4 / 5 kg |
| Package | 39 × 30 × 21.5 cm |
| Listed accessories | Power cord, manual, DMX cable, bracket, 2 screws |
| Listed markings | CE, FCC, RoHS, WEEE |
